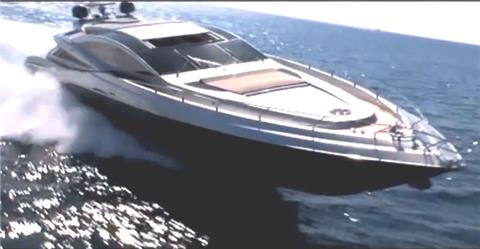

CANADOS 90 ABIERTO

SPECIFICATIONS
Builder Canados International S.r.l
Model Open 90
Hull Number 2
Hull Material GRP
Classification R.I.N.A -Matese Cross 100 - A - 1.1 "Y"

Dimensions
LOA 27,50m
Beam 6,30m
Draft 1,52m
Loaded displacement 66,600Kg
BRT 98,13t

Technical details
Max speed 46kn
Cruising speed 38kn
Fuel consumption 850L/h @38kn
Fuel consumption 500L/h @ 25kn
Range @ 25kn 360nm
Fuel 7500L
Water 1500L
Grey water 415L
Black water 450L

Propulsion system
Main engines 2 x MTU 16V 2000 M93
Operating hours stb 908 hours 12.09.2014
Max Power 2 x 1790kW (2450HP)
Gear box 2 x ZF BW 3060
Surface drive 2 x Twin Disc Arneson ASD 15A1S
Stb. Generator Kohler 20EFOZD 20kW
Port Generator Kohler 27EFOZD 27kW
Operating hours stb 1555 hours 12.09.2014
Operating hours Port 1764 hours 12.09.2014
Bowthruster hydraulically driven of 2 PTOs

Technical
Fresh water maker HP SC180RP Tronic 180L/h
Hot water boiler 2 x Braun 80L
Fresh water pumps 2 x Ecojet 2B
Sanitary treatment Hamann Supermini
Grey water pumps 2 x Gianneschi MV 44 E
Black water pump Gianneschi MV 44 E
Fire pump Gianneschi ACM 311 BT
Bilge pump Gianneschi ACM 311 BT
Fuel transfer 2 x Gianneschi
Air-conditioning Chilled water system by Condaria 120.000Btu/h
Anchor winch Lofrans 2700W
Anchor Bruce 80Kg
Anchor chain 125m D14mm
Passarelle Besenzoni Super Premium Inside Lux 4,5m
Crane Besenzoni SB 3400 350Kg

Tenders
Tender Williams Turbojet 385 90HP
Jetski Seadoo RXP 255 RS 255HP
